GUI | User Experience

Feb. 2023 — May. 2023

Industry Vehicle - Forklift - GUI update / Re-design

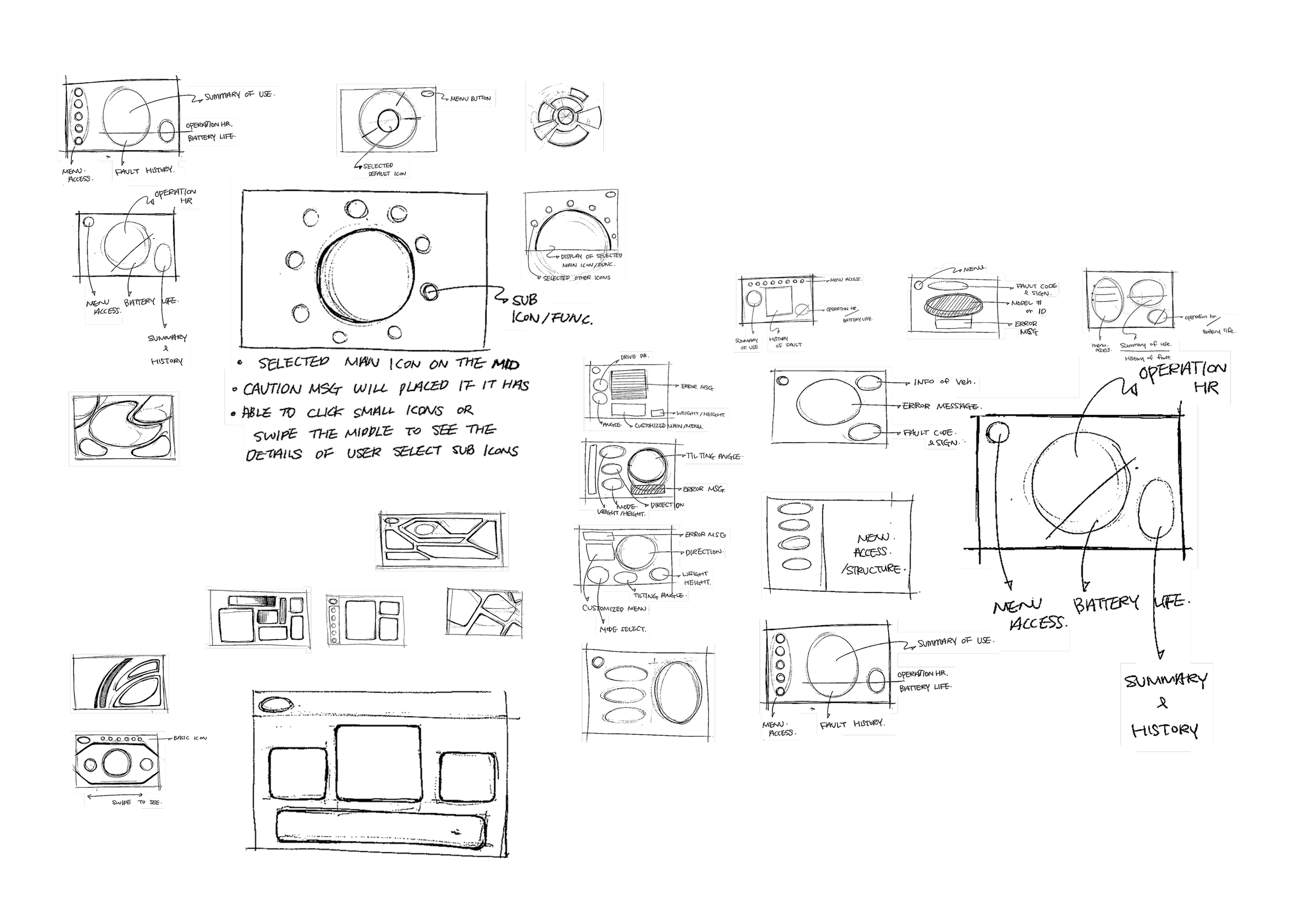

Collaborated with forklift engineers to identify user pain points and develop design concepts.

GOAL OF PROJECT

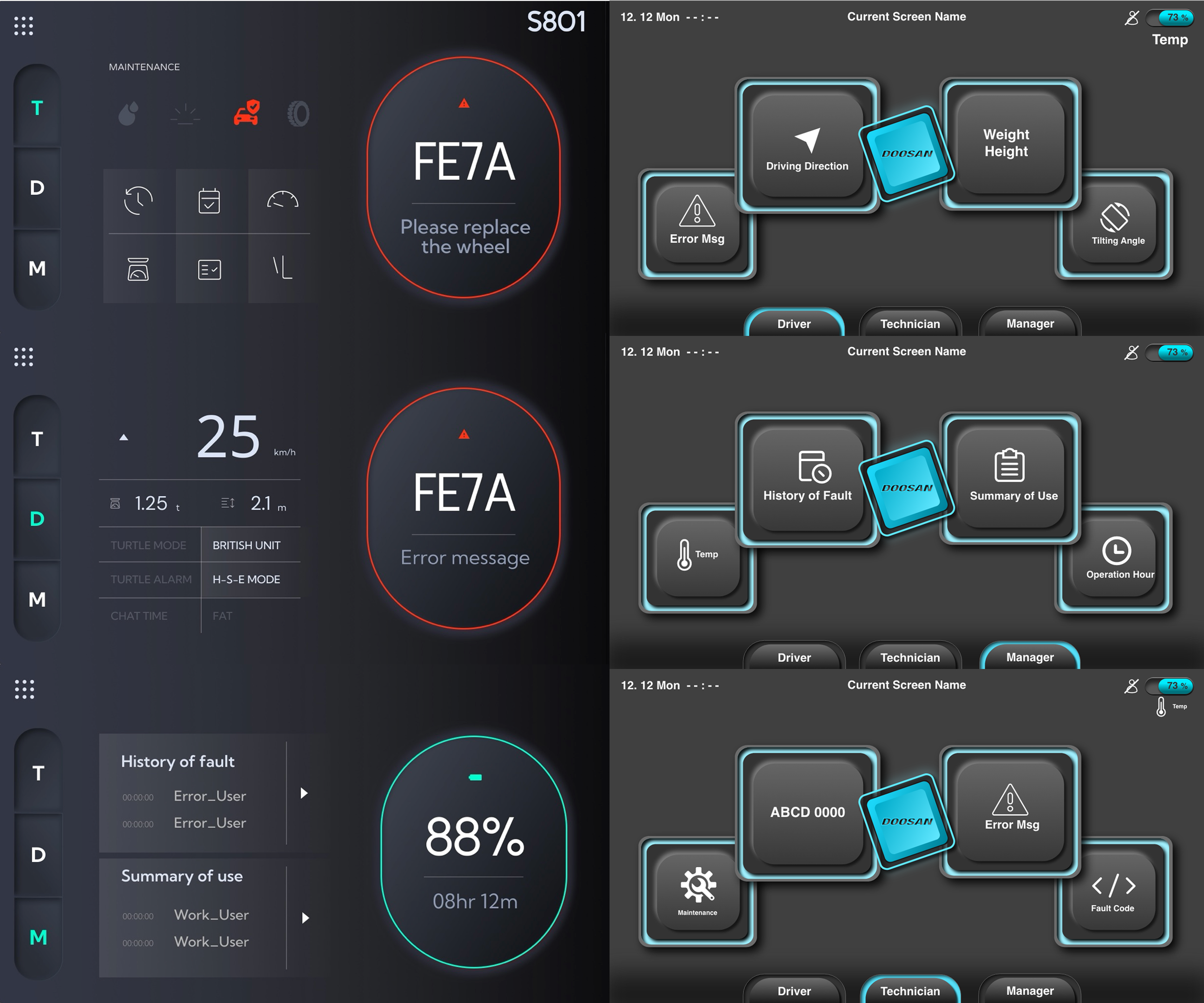

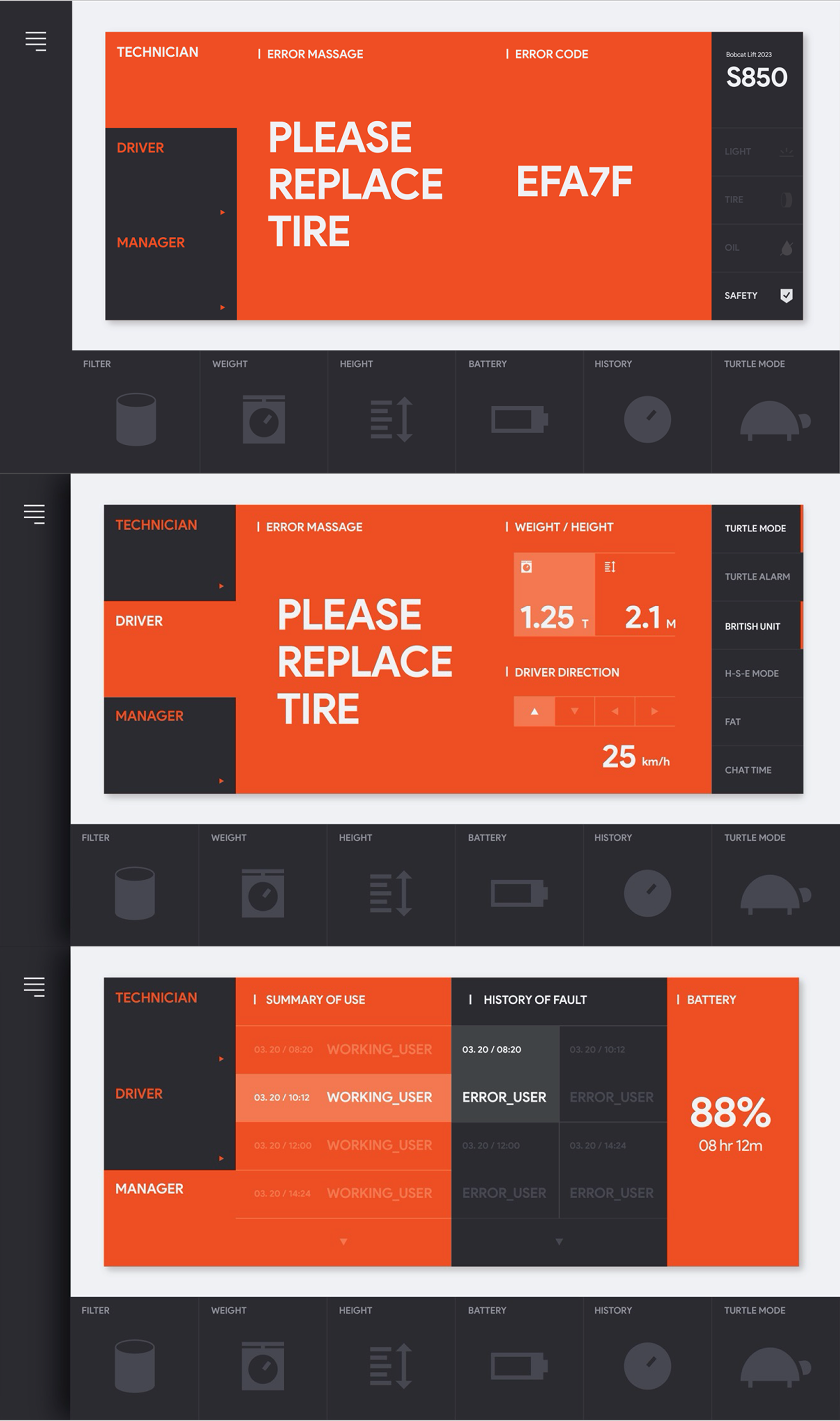

Main Page Improvements
— Highlighting the most frequently used menus and functions on the main page for quick access

Customized Layout
— Creating tailored sections and layouts for different occupations to align with their unique objectives.
— Restricting access to certain keys/buttons based on user roles.

Brand name means “Little grains of sand that together make a mountain.”

Has focused on providing what people need the most.

Focus was shifted to areas that are more closely related to fundamentally contributing to human lives, such as energy, clean water, roads, infrastructure and buildings.

For the logo on the background in the main color or black & white, 100~80% white and 20~0% exclusive colors are used.

Pantone 300C

C100 M60

RGB 0 94 184

HEX 005EB8

Endeavour Blue

The other brand is synonymous with durability and dependability.

This brand equipment has rightly earned the nick name “One Tough Animal.”

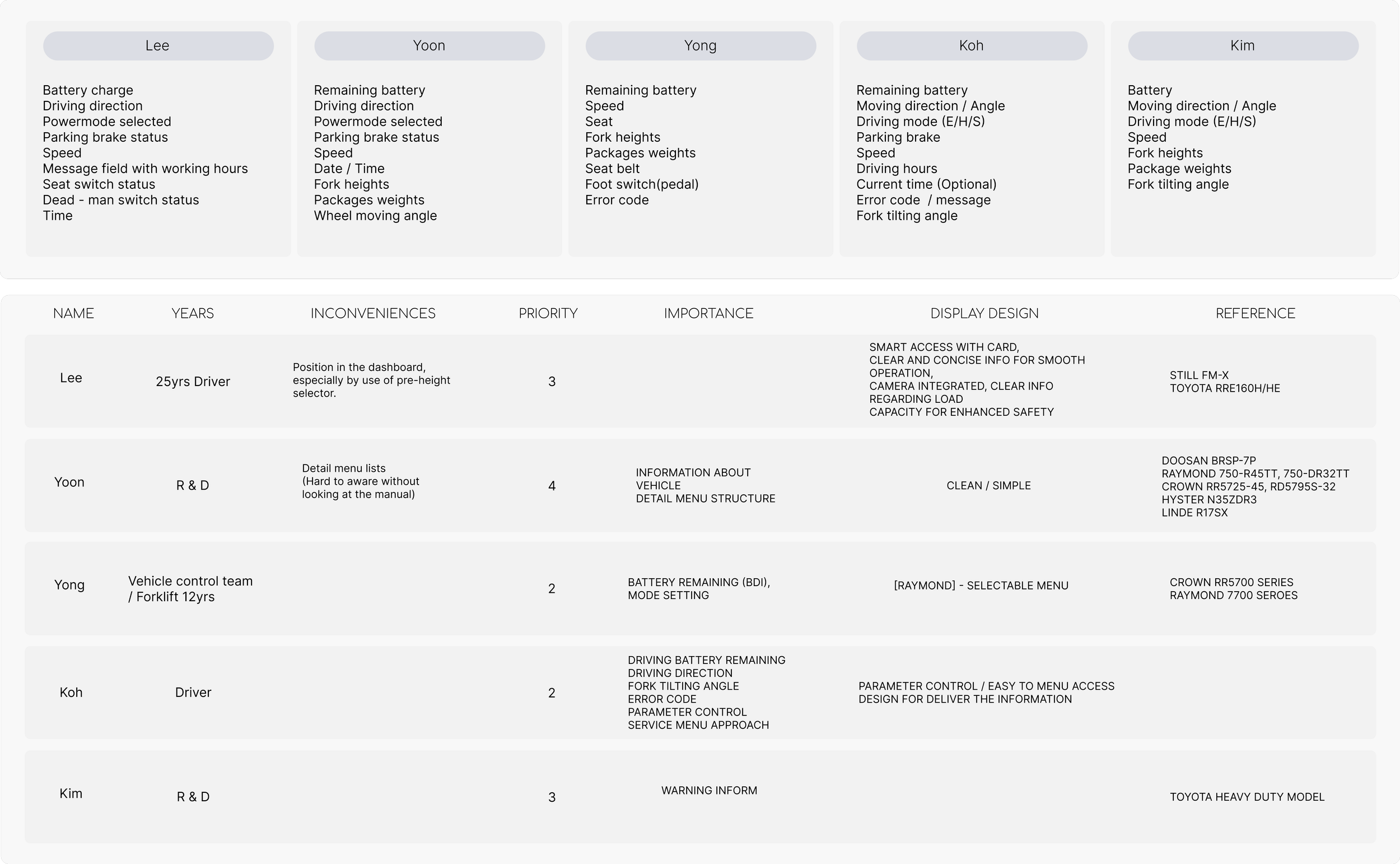

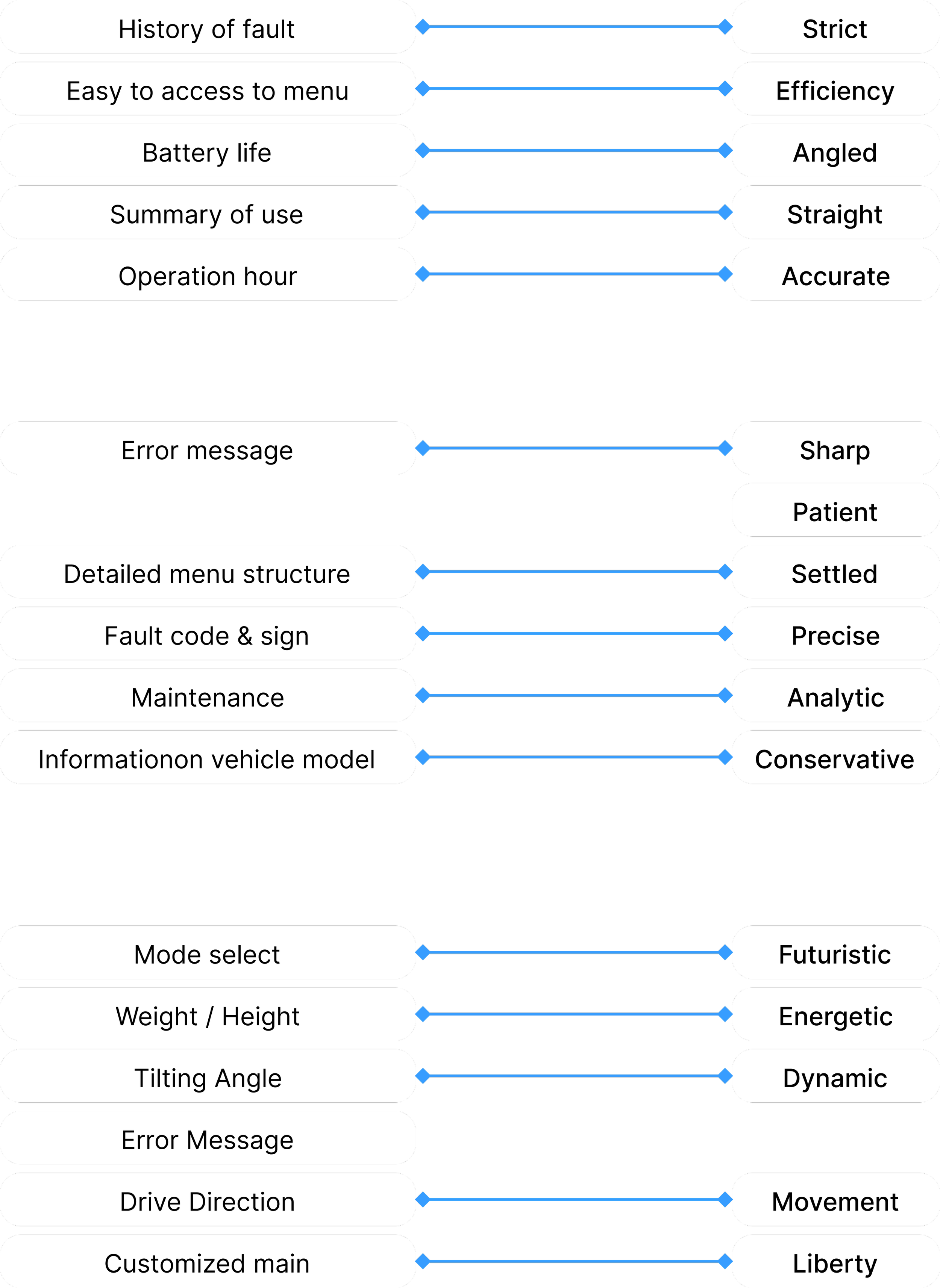

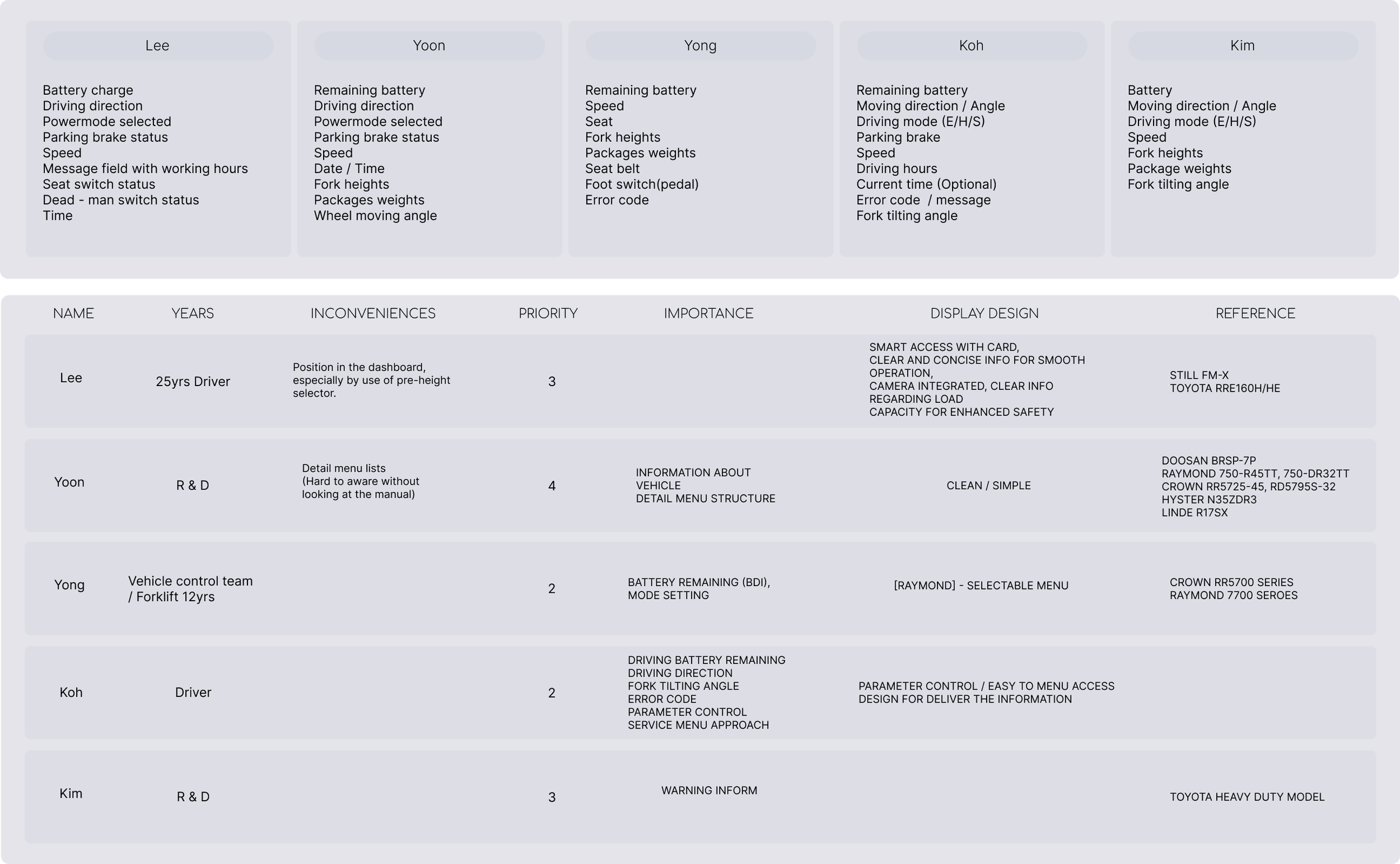

USER SURVEY

FROKLIFT SAFETY CONCERNS

WORKPLACE RISK

According to OSHA, forklifts are a major cause of workplace injuries, with about 35,000 serious injuries and 62,000 minor injuries reported annually in the U.S.

KEY ACCIDENT CAUSES

Lack of Training : Unstrained operators are more likely to crash.
Overloading : Carrying too much weight can make forklifts tip over.
Speeding : Driving too fast leads to collisions and tipping.
Poor Visibility : Limited view increases the chance of hitting people or objects.
Bad Maintenance : Faculty forklifts can cause accidents.
No safety Rules : Not using safety gear or having traffic rules adds risk.
Distractions : Using phones or devices while driving leads to crashes.
